Top Decks & Exposed Areas
Ramps
Intermediate Decks
Ground-Contact Floor-Slabs

Floor coatings

The trafficked concrete surfaces used in multi-storey and underground car parks are divided into top decks & exposed areas, ramps, intermediate decks and ground-bearing slabs. The coatings on these four floor types are exposed to varying phenomena. Consequently, different technical requirements are placed on their respective coating systems.

  • On open parking decks that are completely exposed to the weather, there are more influences affecting the coating system than in the case of interior surfaces. These include heat from the sun's radiation, UV light and rapid temperature changes during thunderstorms. Many regions also experience cold, ice and snow in the winter months. OS 10 and OS 11 systems are normally used as the coating system on exposed decks.

    OS 8 surface protection system
    MC-DUR TopSpeed flex plus
    OS 11 a surface protection system

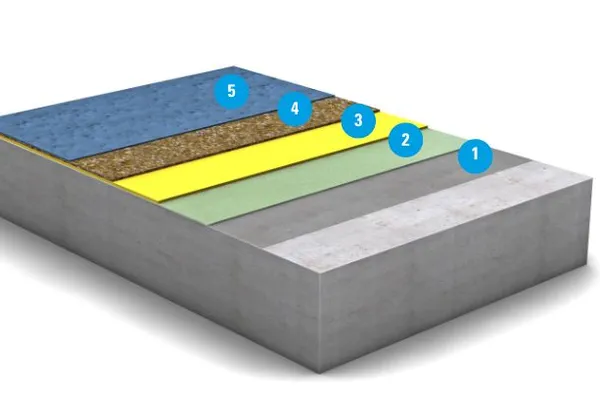

    OS 10 surface protection system MC-DUR 2211 MB

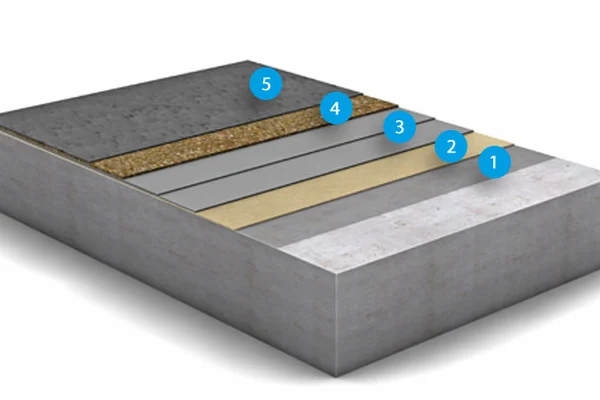

    OS 10 surface protection system
    MC-DUR TopSpeed flex plus

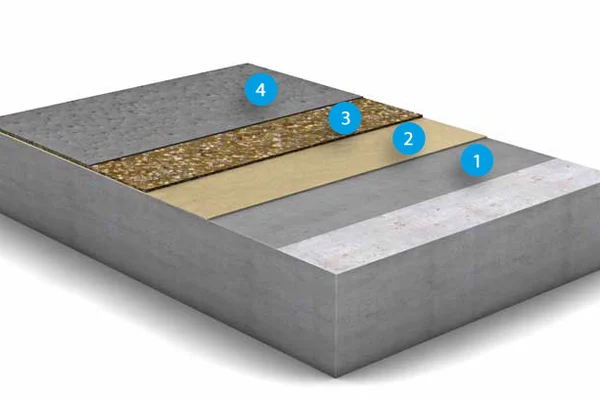

    OS 8 surface protection system
    MC-DUR TopSpeed

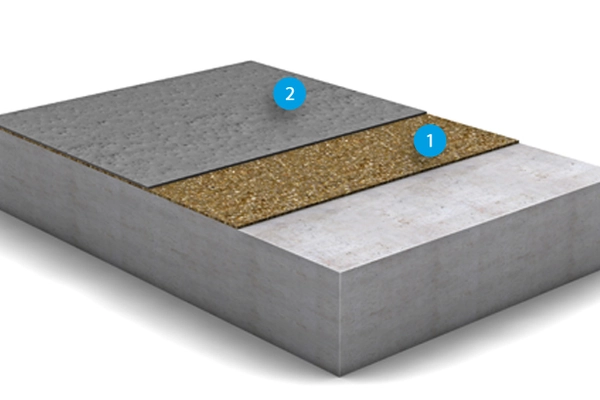

    OS 8 surface protection system MC-DUR 1200 VK / MC-DUR TopSpeed
    OS 8 surface protection system MC-DUR TopSpeed flex
  • On the ramps of both multi-storey car parks and underground car parks, the floor wear layers are subjected to high mechanical stress from accelerating and braking vehicles. Consequently, highly abrasion-resistant coating systems are common on such surfaces (OS 8), often in combination with carefully embedded, hard aggregates and dry-shake sand or similar.

    OS 8 surface protection system
    MC-DUR TopSpeed flex plus

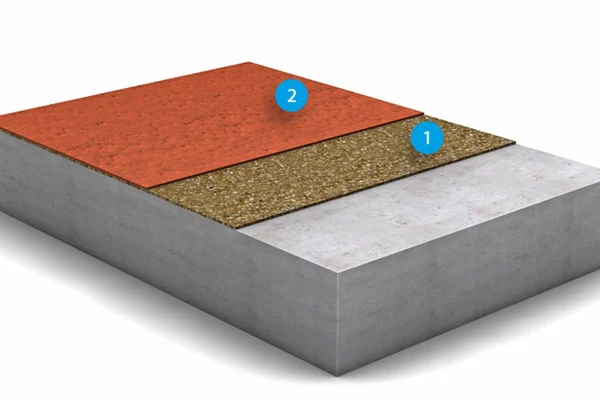

    OS 8 surface protection system
    MC-DUR 1322
    OS 10 surface protection system
    MC-DUR TopSpeed flex plus
    OS 8 surface protection system MC-DUR 1200 VK / MC-DUR TopSpeed
    OS 8 surface protection system
    MC-DUR TopSpeed flex
    OS 8 surface protection system
    MC-DUR TopSpeed

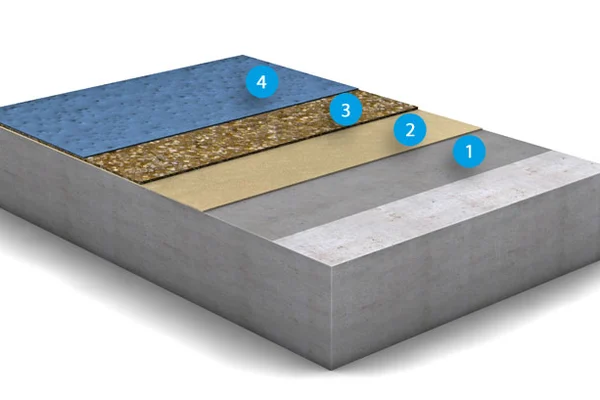

    OS 8 surface protection system
    MC-DUR 1252
  • Trafficked deck slabs tend to provide the largest surface area of purpose-built car parks. In multi-storey car parks, the various parking levels are usually open at the sides, while in underground car parks they are invariably closed off. Intermediate decks are the domain of robust epoxy resin and KineticBoost® coatings (OS 8), occasionally in combination with crack patching systems. Some specialist planners prefer crack-bridging OS 10 and OS 11 coatings on these surfaces.

    OS 8 surface protection system MC-DUR 1200 VK / MC-DUR TopSpeed
    OS 8 surface protection system
    MC-DUR 1322
    OS 8 surface protection system
    MC-DUR TopSpeed flex
    OS 8 surface protection system
    MC-DUR TopSpeed
    OS 8 surface protection system
    MC-DUR 1252
  • For the ground-contact floor slabs of purpose-built car parks, the planning engineers and architects usually select resistant epoxy resin or KineticBoost® systems (OS 8). Such surfaces must be carefully blasted and sealed before coating to ensure a durable, long-lasting bond.

    OS 8 surface protection system
    MC-DUR TopSpeed flex plus

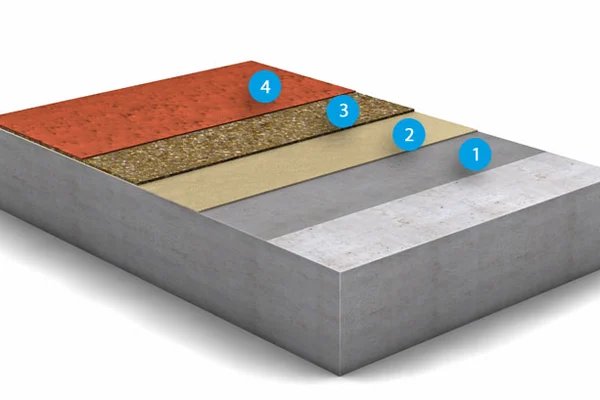

    OS 11 b surface protection system
    OS 11 a surface protection system
    OS 8 surface protection system
    MC-DUR 1322
    OS 8 surface protection system MC-DUR 1200 VK / MC-DUR TopSpeed
    OS 8 surface protection system
    MC-DUR TopSpeed flex
    OS 8 surface protection system
    MC-DUR TopSpeed
    OS 8 surface protection system
    MC-DUR 1252

References

Carpark coating in the EUROPA SHOPPING MALL MC-DUR TopSpeed demonstrated all its advantages during repairs carried out on the car parking areas of the Europa shopping…

Banska Bystrica - Slovakia

Underground car park of Pentahotel Leipzig extensively refurbished The underground car park below the Pentahotel in Leipzig's Brockhaus Centre has been undergoing extensive refurbishment…

Leipzig - Germany

Multi-storey car park in Leibstadt refurbished At car park ZZ6 serving the Leibstadt nuclear power plant in Switzerland, intermediate deck 2 was recently given a slip-resistant…

Leibstadt

MC-KKS/B stops concrete corrosion in carpark Extensive rehabilitation measures had to be carried out on a five-storey car park in Germany. Thanks to the cathodic…

Germany

New coating for a underground car park in Ingolstadt The resistant car park coating MC-DUR TopSpeed was used for a newly built underground parking garage in Ingolstadt.

Germany

Car park and office refurbishment at Startup Hub in Lisbon MC high-performance coatings were used in the car park and office areas of an office complex in Lisbon, providing excellent…

Portugal

OS 10 system protects parking decks in Gelsenkirchen car park Two parking decks in a Gelsenkirchen car park were coated with an OS 10 system based on MC-DUR TopSpeed Flex plus from…

Germany
